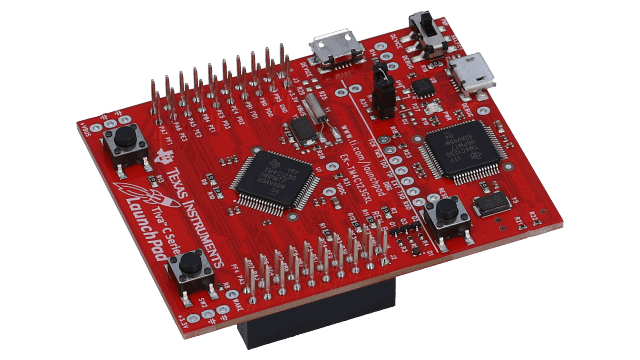

void initPWM()
{
    SYSCTL_RCGCPWM |= (1 << 1); // turn on PWM1
    SYSCTL_RCGC2 = SYSCTL_RCGC2 | (1 << 5); // turn on GPIOF
    SYSCTL_GPIOHBCTL = SYSCTL_GPIOHBCTL | (1 << 5); // turn on AHB access to GPIOF

    // Will drive the LED's using PWM
    // PF1 -> pin 29 -> Red  -> M1PWM5 Module 1, PWM Gen 2, GPIOPCTL value = 5
    // PF2 -> pin 30 -> Blue -> M1PWM6 Module 1, PWM Gen 3, GPIOPCTL value = 5
    // PF3 -> pin 31 -> Green-> M1PWM7 Module 1, PWM Gen 3, GPIOPCTL value = 5
    GPIOF_AFSEL |= (1<<3) | (1 << 2) | (1 << 1); // select alternative function for GPIOF1,2,3
    GPIOF_DEN = GPIOF_DEN | ( (1 << 3) | (1 << 2 ) | (1 << 1) ); // digital mode bits 1,2,3 of GPIOF
    GPIOF_PCTL = (5 << 12) | (5 << 8) | (5 << 4);

    PWM1_PWMENABLE |= (1 << 7)| (1 << 6) | (1 << 5);
    PWM1_PWM2LOAD = 50000000/25000; // 25kHz assuming system clock is 50MHz
    PWM1_PWM3LOAD = 50000000/25000; // 25kHz assuming system clock is 50MHz
    // PWM counter will count down.  When it reaches 0 the output is set to zero
    // when it counts down to the value in the CMPA or CMPB register the output is
    // driven high.  This means that the duty is proportional to the value in CMPA or CMPB
    PWM1_PWM2GENB = (2 << 0) + (3 << 10); // Drive high on match, low on zero (gen b)
    PWM1_PWM3GENA = (2 << 0) + (3 << 6); // Drive high on match, low on zero (gen a)
    PWM1_PWM3GENB = (2 << 0) + (3 << 10); // Drive high on match, low on zero (gen b)
    PWM1_PWM2CMPB = 0;
    PWM1_PWM3CMPA = 0;
    PWM1_PWM3CMPB = 0;
    PWM1_PWM2CTL |= (1 << 0); // enable pwm block
    PWM1_PWM3CTL |= (1 << 0); // enable pwm block
    PWM1_PWMSYNC = 0x0f; // synchronize all counters
}
void setRed(uint32_t Percent)
{
    Percent = (Percent * PWM1_PWM2LOAD)/100;
    PWM1_PWM2CMPB = Percent;
}
void setBlue(uint32_t Percent)
{
    Percent = (Percent * PWM1_PWM3LOAD)/100;
    PWM1_PWM3CMPA = Percent;
}
void setGreen(uint32_t Percent)
{
    Percent = (Percent * PWM1_PWM3LOAD)/100;
    PWM1_PWM3CMPB = Percent;
}
