I received an ESP32-Camera board from Aliexpress recently but unfortunately it’s camera was broken (the supplier is sending a free replacement). Not wanting to waste the otherwise good ESP32 I decided to see if it could be used to control the brightness and colour of an LED such as the PL9823. These LED’s are controlled using a serial data string which is documented elsewhere in this blog (https://ioprog.com/2016/04/09/stm32f042-driving-a-ws2812b-using-spi/ and https://ioprog.com/2018/11/08/stm32l031-controlling-a-pl9823-led-using-spi/)
It turned out to be pretty straightforward.

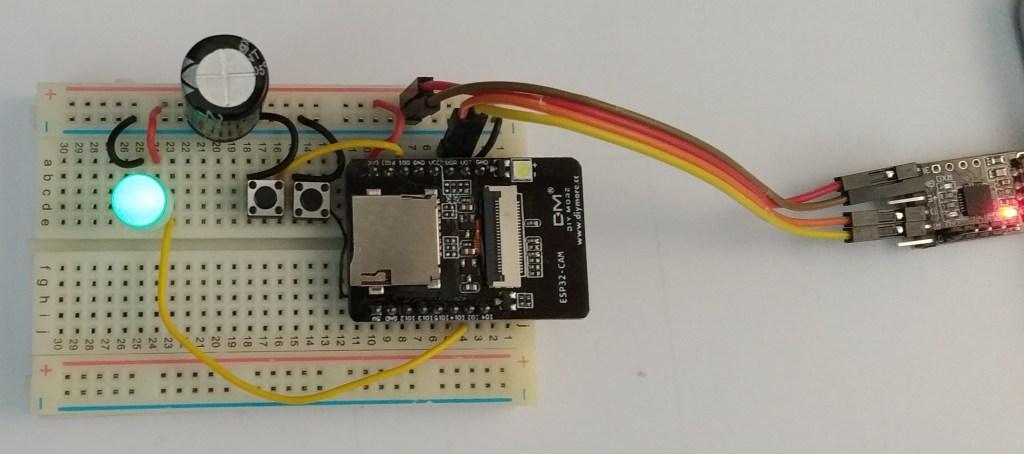

The ESP32 board was connected to the PC over a USB-Serial converter. Two buttons were added to control boot mode and the PL9823’s Data In pin was connected to IO2. The code to control all of this was developed in the Arduino environment (based off an example) and is as follows:
#include <SPI.h>
/*
* Controlling a PL9823 LED over bluetooth on an ESP32
Based on Neil Kolban example for IDF: https://github.com/nkolban/esp32-snippets/blob/master/cpp_utils/tests/BLE%20Tests/SampleWrite.cpp
Ported to Arduino ESP32 by Evandro Copercini
*/
#include <BLEDevice.h>
#include <BLEUtils.h>
#include <BLEServer.h>
#define SERVICE_UUID "22389e17-7cee-41ce-8aa0-28a4482f7020"
#define CHARACTERISTIC_UUID "a575e1bf-e15f-4534-a80c-1837348360ad"
void writePL9823(uint32_t Colour)
{
// each colour bit should map to 4 SPI bits.
// Format of Colour (bytes) 00RRGGBB
uint8_t SPI_Output[12];
int SrcIndex = 0;
int DestIndex = 0;
for (DestIndex = 0; DestIndex < 12; DestIndex++)
{
if (Colour & (1 << 23))
{
SPI_Output[DestIndex] = 0xe0;
}
else
{
SPI_Output[DestIndex] = 0x80;
}
Colour = Colour << 1;
if (Colour & (1 << 23))
{
SPI_Output[DestIndex] |= 0xe;
}
else
{
SPI_Output[DestIndex] |= 0x8;
}
Colour = Colour << 1;
}
SPI.beginTransaction(SPISettings(2000000, MSBFIRST, SPI_MODE0));
SPI.transfer(SPI_Output, 12);
delay(10);
SPI.endTransaction();
}
class MyCallbacks: public BLECharacteristicCallbacks {
void onWrite(BLECharacteristic *pCharacteristic) {
std::string value = pCharacteristic->getValue();
if (value.length() > 0) {
// Write debug messages out to serial port
Serial.println("*********");
Serial.print("New value: ");
for (int i = 0; i < value.length(); i++)
Serial.print(value[i]);
Serial.println();
Serial.println("*********");
// update the PL9823 LED
uint32_t intvalue;
intvalue = strtoul(pCharacteristic->getValue().c_str(),NULL,16);
writePL9823(intvalue);
}
}
};
void setup() {
SPI.begin(1,4,2,3); // (int8_t sck, int8_t miso, int8_t mosi, int8_t ss)
Serial.begin(115200);
Serial.println("Connect to the device over BLE and change the colour of the LED");
BLEDevice::init("BLE_PL9823");
BLEServer *pServer = BLEDevice::createServer();
BLEService *pService = pServer->createService(SERVICE_UUID);
BLECharacteristic *pCharacteristic = pService->createCharacteristic(
CHARACTERISTIC_UUID,
BLECharacteristic::PROPERTY_READ |
BLECharacteristic::PROPERTY_WRITE
);
pCharacteristic->setCallbacks(new MyCallbacks());
pCharacteristic->setValue("ffffff");
pService->start();
BLEAdvertising *pAdvertising = pServer->getAdvertising();
pAdvertising->start();
// Write the initial value out to the PL9823
uint32_t intvalue;
intvalue = strtoul(pCharacteristic->getValue().c_str(),NULL,16);
writePL9823(intvalue);
}
void loop() {
// put your main code here, to run repeatedly:
delay(1000);
}
Using an Andoid app like BLE Scanner, it is possible to control the the LED by sending a hex string such as ff0000 for maximum red; 00ff00 for max green and 0000ff for max blue. These colours can be mixed to form arbitrary colours and brightness.
